|Main Contractor||Geoffrey Osborne Ltd|
|Material Used||Aurubis Nordic brass, Euroclad steel liner panel substrate|

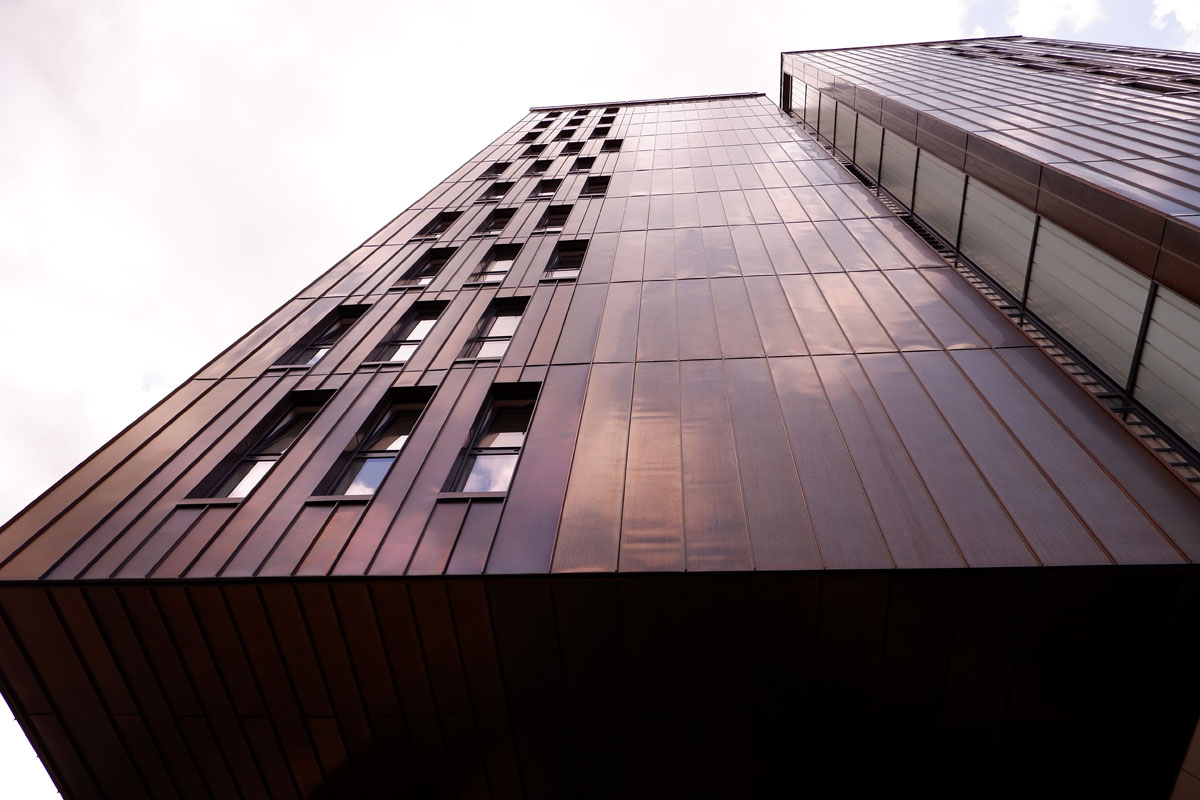

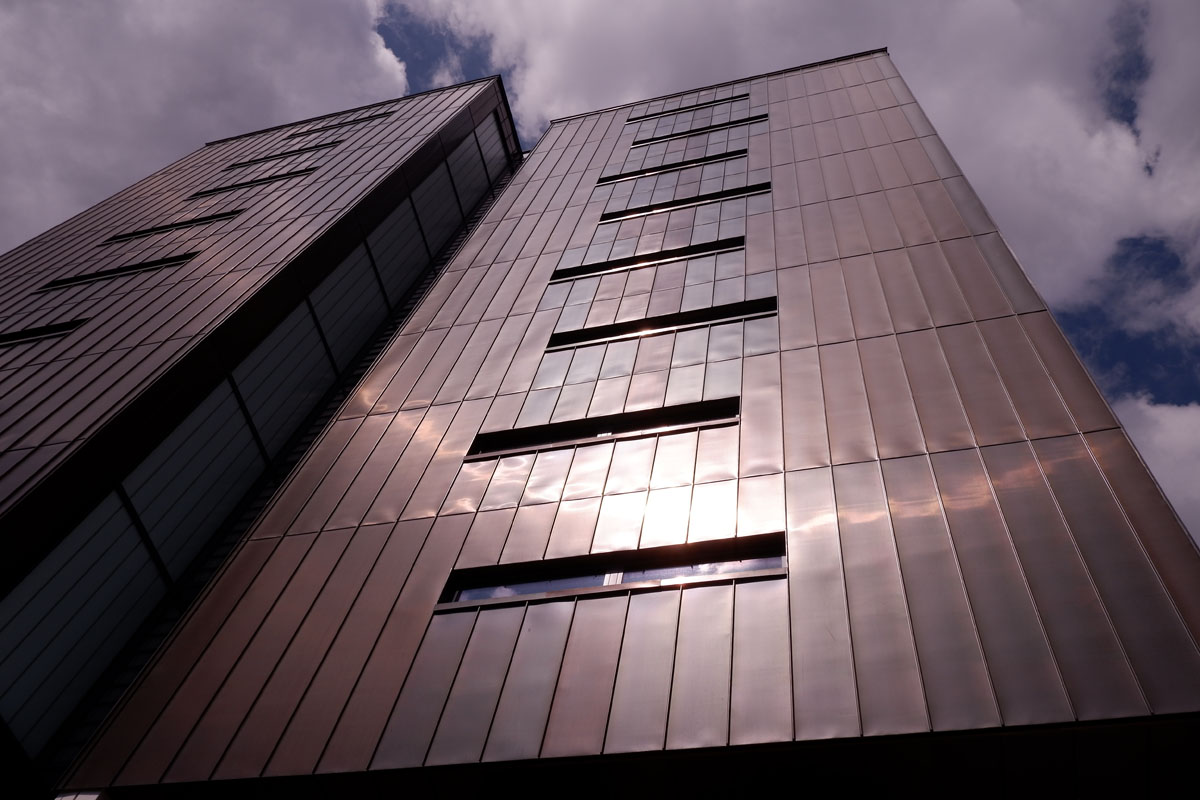

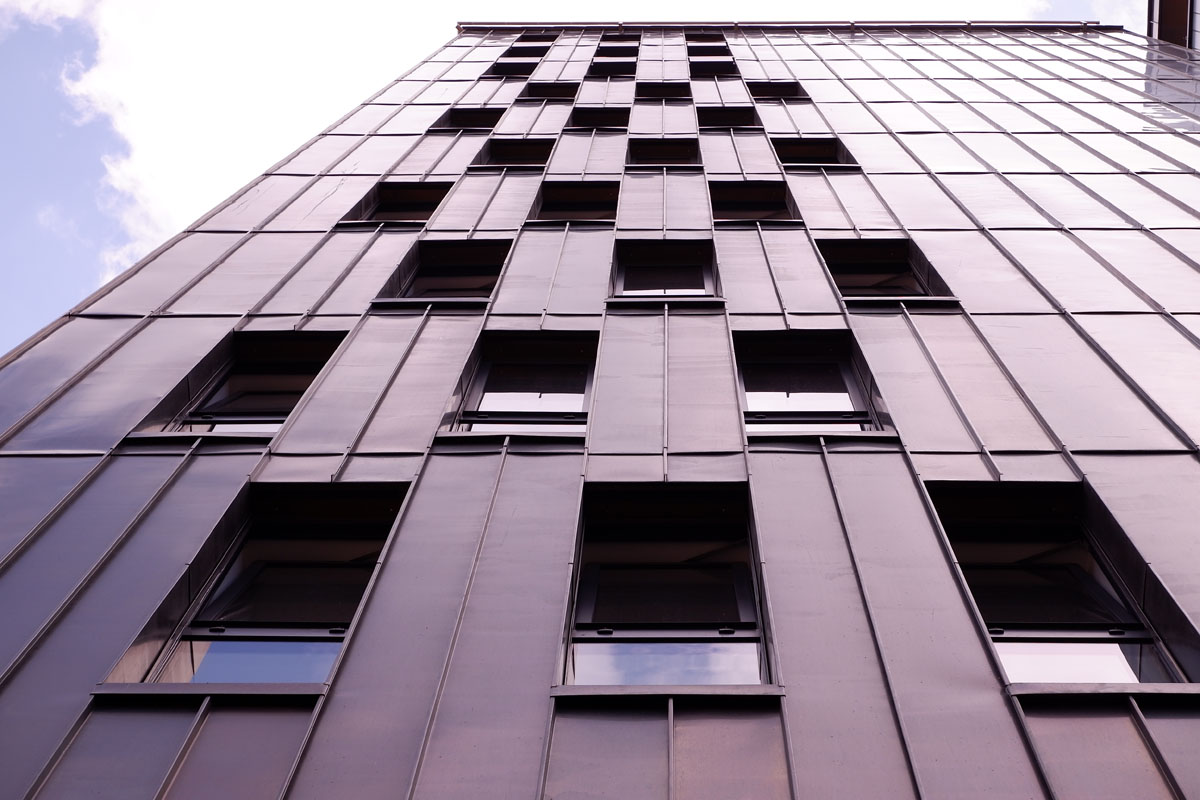

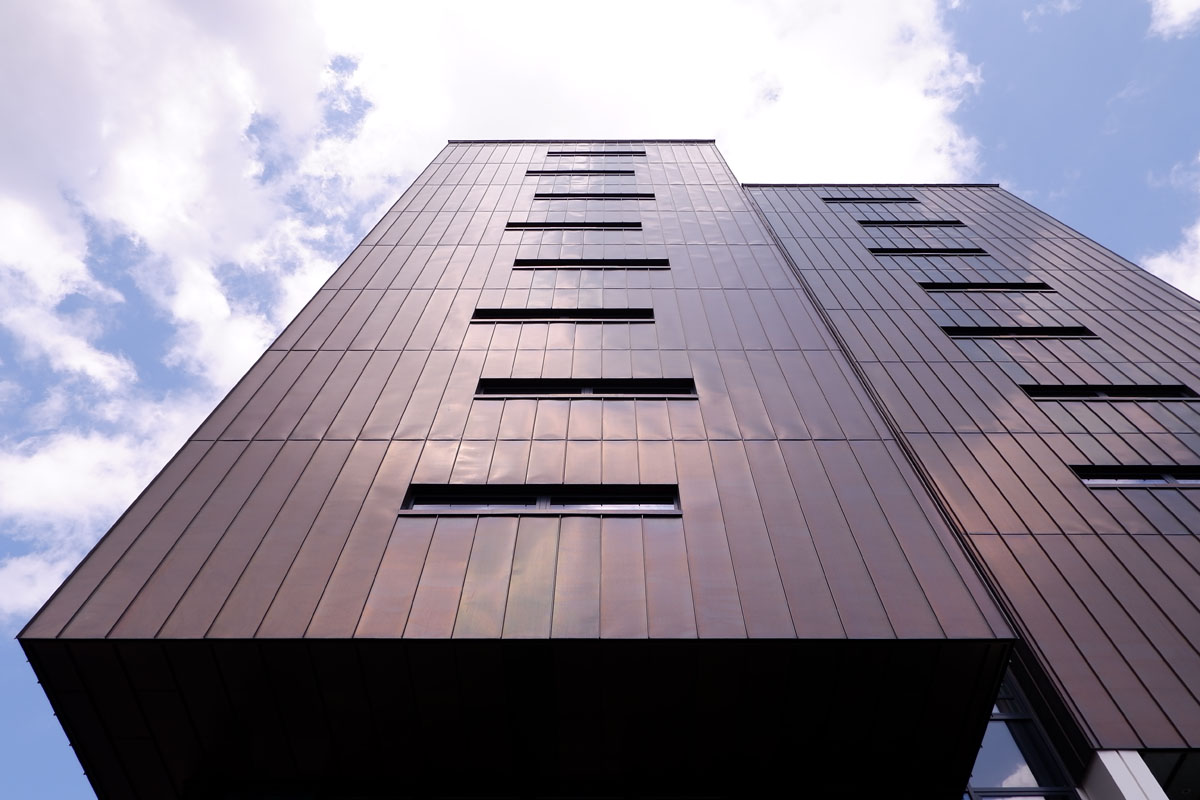

The Euroclad substrate was screw fixed into SIPS panels using 2 nr galvanised steel “zed” sections to cater for building tolerances. The .7mm Aurubis Nordic brass sheet was installed with vertical standing seams at 500mm centres. Stainless steel standing seam clips were screwed to the steel substrate with Stainless steel pan head screws.
